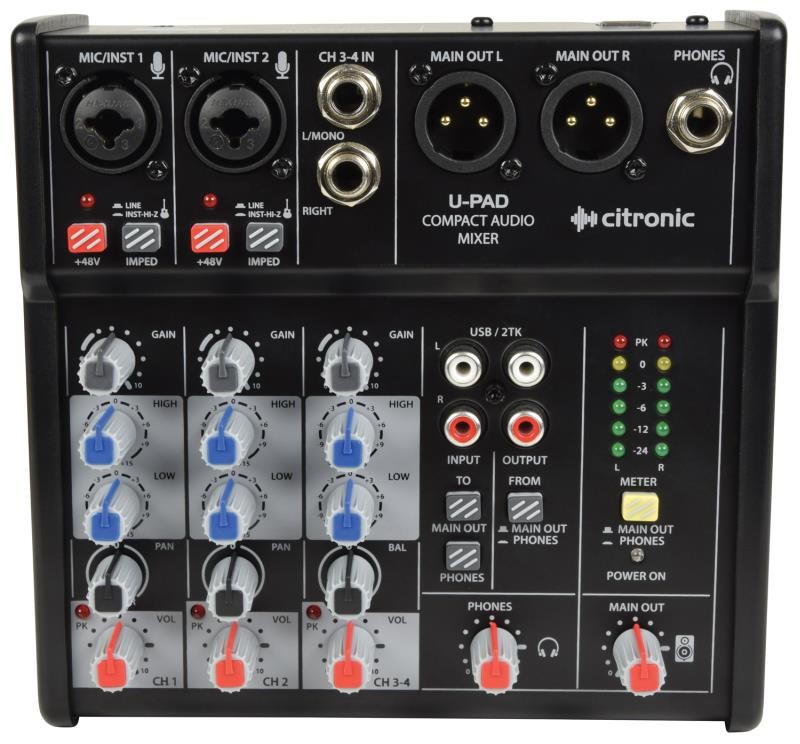

Compact audio mixer with 2 mono inputs and a stereo line input. Both mono channels have a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR connector. High/Low EQ and Pan controls are present on all mono and stereo input channels and a digital input from USB can be routed to main output or phones for monitoring. Analogue output is delivered on a pair of balanced XLR connectors and digitally to the USB for recording. When powered from a laptop USB port, the U-PAD offers high quality recording capability in any environment, even on location. High quality digital stereo input and output via USB Studio quality balanced analogue inputs & outputs Individually switchable +48V phantom power Supplied with USB lead for power and PC/Mac connection
Power supply 5.5Vdc (USB) Gain -14 to +40dB EQ: low±15dB @ 80Hz EQ: high±15dB @ 12kHz Phantom power +48V individually switchable (XLR inputs only) Input impedance mic2k Ohms Input impedance instrument1M Ohms Input impedance line20k Ohms Frequency response 20Hz - 20kHz (±0.5B) USB computer interface Duplex stereo in/out AD/DA Sampling format 24-bit, 96kHz max. THD +N<0.03% @ 1kHz Dynamic range 102dB Crosstalk stereo92dB Output Left + Right balanced XLR (analogue) Output impedance 120 Ohms Dimensions 171 x 166 x 66mm Weight 900g
