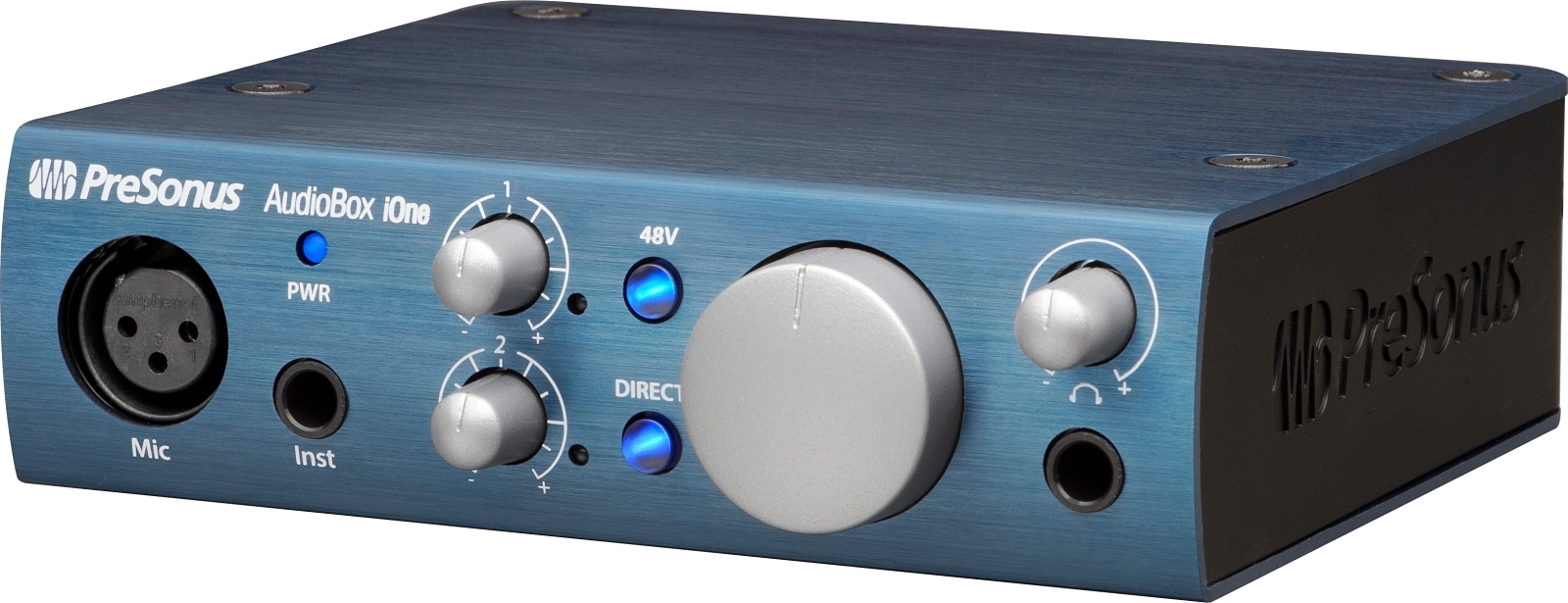

Bring your studio with you and record wherever you go! The two-input PreSonus AudioBox iOne lets you capture voice and instrument on macOS, Windows and iPadOS devices. Simply plug in your guitar and microphone, and you’re ready to create! USB bus-powered and bundled with powerful, easy-to-use recording software, the AudioBox iOne makes it easy to capture ideas and create professional-quality recordings.

The AudioBox iOne offers one instrument input for your guitar or bass and one mic input with a sweet-sounding Class A mic preamp that will capture your voice in all its glory, plus phantom power for condenser microphones. High-quality 24-bit, 96 kHz digital converters; balanced ¼-inch outputs; and a loud, clear headphone output with independent level control ensure you hear every detail. An internal analog mixer enables you to monitor recorded tracks and overdubs with zero latency.

Record in stereo on iPad with free PreSonus Capture Duo or record up to 32 tracks with affordable Capture for iPad. Then wirelessly beam your iPad tracks to included Studio One recording and production software for macOS and Windows for editing and mixing — or do the whole project with Studio One.

The AudioBox iOne can sit on a tabletop or fit in the pocket of a backpack and works with standard iOS power accessories. Its metal chassis is built to travel, yet it weighs just 1.35 pounds (0.62 kg). Your AudioBox iOne is ready to go wherever sound takes you.

General

SERIES AudioBox

COLOR Blue

COUNTRY OF ORIGIN CN

Electronics

INPUTS Two - 1 Mic/Line, 1 Line

HEADPHONE JACK 1/4" TRS Active Stereo

CONNECTIVITY USB 2.0

VOLTAGE USB Bus Powered

PHANTOM POWER +48 VDC (±2 VDC)

Performance

DIGITAL AUDIO BIT DEPTH 24

DIGITAL AUDIO DYNAMIC RANGE 105 dB (A-Weighted, 48 kHz Sample Rate)

Inputs

MICROPHONE INPUT CONNECTION TYPE XLR Female, Balanced

MICROPHONE PREAMP COMMON MODE REJECTION RATIO >65 dB (1 kHz, 52 dB Gain)

MICROPHONE PREAMP FREQUENCY RESPONSE 10 Hz to 40 kHz (±3.0 dB)

MICROPHONE PREAMP GAIN CONTROL RANGE 0 dB to 52 dB (±1 dB)

MICROPHONE PREAMP INPUT IMPEDANCE 1200Ω

MICROPHONE PREAMP MAXIMUM INPUT LEVEL +10 dBu (Unity Gain, 1 kHz at 0.5% THD+N)

MICROPHONE PREAMP SIGNAL TO NOISE RATIO >95 dB (Unity Gain, Reference = +4 dBu, 20 Hz to 22 kHz)

MICROPHONE PREAMP TOTAL HARMONIC DISTORTION <0.008% (Unweighted, 1 kHz at +4 dBu Output, Unity Gain)

Outputs

HEADPHONE OUTPUTS FREQUENCY RESPONSE 20 Hz - 30 kHz (±1.0 dB)

HEADPHONE OUTPUTS IMPEDANCE WORKING RANGE 10Ω

HEADPHONE OUTPUTS MAXIMUM OUTPUT 60 mW/Channel at 60Ω Load

LINE OUTPUTS CONNECTION TYPE 1/4" TRS Female

MAIN AND LINE OUTPUTS OUTPUT IMPEDANCE 51Ω

Model:  2777700107
Part Number:  2777700107
Brand:  PreSonus
Stock Availability  In Stock
