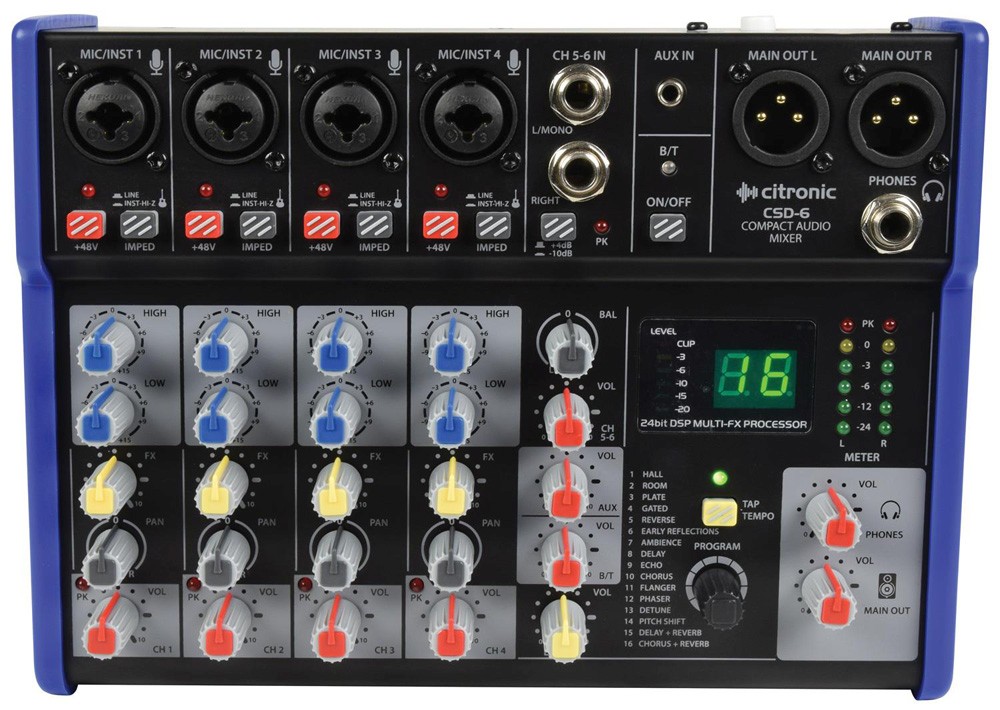

Citronic CSD-6 compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls. The B/T pairing button enables wireless connection to a smart phone or tablet for playback. All CSD mixers feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances. B/T wireless pairing for smartphone or tablet 16 program, 24-bit DSP effects engine Individually switchable +48V phantom power Supplied with DC power adaptor
Power supply 5Vdc 1A (adaptor included) Power consumption max. 5W EQ: low±15dB @ 80Hz EQ: high±15dB @ 12kHz Phantom power +48V individually switchable (XLR inputs only) Effects 16 program DSP (24-bit sigma-delta, 40kHz) Audio source B/T wireless receiver B/T wireless version 2.1 + EDR Input impedance mic2k Ohms Input impedance instrument1M Ohms Input impedance line20k Ohms Frequency response 20Hz - 20kHz (±0.5B) THD +N <0.03% @ 1kHz Dynamic range 102dB Crosstalk stereo92dB Output Left + Right balanced XLR Output impedance 120 Ohms Max. output level 3Vrm
