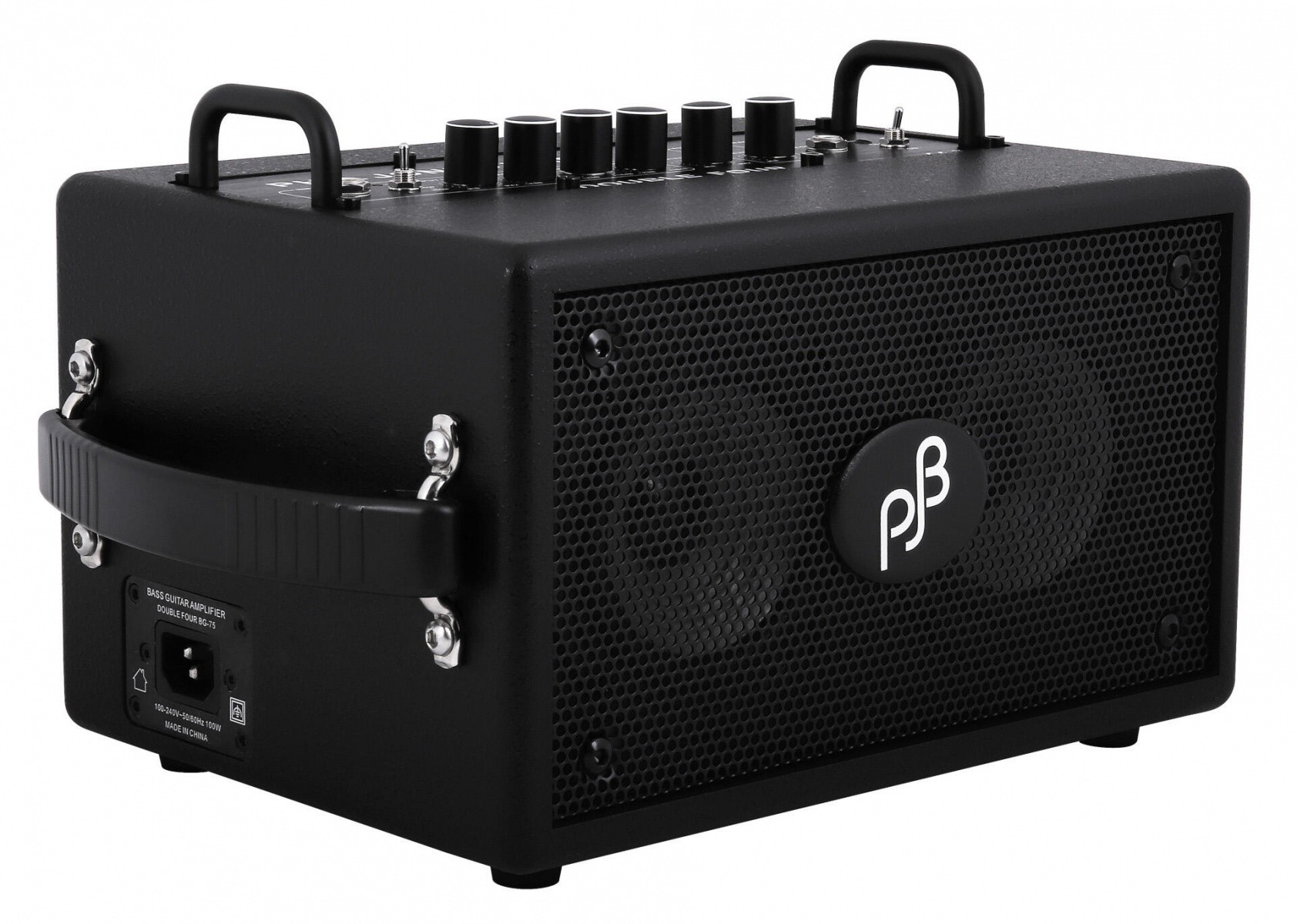

Phil Jones Double Four BG-75 2x4 Combo Bass Amp, Black
  Zoom
Phil Jones Double Four BG-75 2x4 Combo Bass Amp, BlackPhil Jones Double Four BG-75 2x4 Combo Bass Amp, BlackPhil Jones Double Four BG-75 2x4 Combo Bass Amp, BlackPhil Jones Double Four BG-75 2x4 Combo Bass Amp, Black

Phil Jones Double Four BG-75 2x4 Combo Bass Amp, Black

Our Price:  £375.00

Availability:



In Stock

  • Compact design offering powerful sound
  • 70W Single-Channel Bass Amp
  • x2 PJB Neopower Type C Speakers
  • 3-band EQ
  • Controls: Level Selector, Volume and Aux Level, instrument and aux input, headphones output

Read More ..



Collection

Click & Collect Available

Guitars Set Up

All Guitars Set Up Before Despatch. Read more ..

Contact us

Need advice? Call us on 0141 3392941

The DOUBLE FOUR is the pinnacle of micro bass amps. With new driver design, acoustic loading and the latest digital amplifier technology, this tiny bass combo may be designed as a practice amp but continues to amaze everyone with the great PJB signature bass tone. From a cabinet with the size of a jewel box, this seems to defy the laws of physics.

Driver and Amplifier Technologies

Driver and Amplifier Technologies Pushing Phil Jones Bass expertise of using smaller drivers to get the ultimate bass sound, they  applied our vast experience to an even smaller, “Neo Power”4 inch driver built with precision of a Swiss watch. This 4” baby is able to cope with the extreme signals coming in from an amplified bass guitar. By using their extensive R&D facility which includes the largest anechoic chamber in the bass guitar amplifier industry, and the KLIPPEL transducer measurement system, Phil Jones Bass were able to develop the perfect 4 inch transducer for our purpose. Phil Jones Bass analyzed the neodymium magnetic system, the cone behaviors at all frequencies in 3D representation, cone suspension and frame, until they achieved their goal. Phil Jones Bass then looked at the acoustic loading using the acoustic simulation software and calculated exactly the full power cone displacement at every frequency.

Each one of these 4” speaker is fed with its own Pulse Width Modulation PWM amplifier. PWM amplifiers are extremely efficient compared to the traditional analog solid state amplifiers, converting electrical energy to power using on the speakers instead of wasting it on hot. Since the amp is running at lower working temperature, the DOUBLE FOUR will give years of service long after other amps have faded away. By using dual amplifiers one for each speaker, the bass control is greatly improved since the damping factor ( the amplifier’s ability to put on the “brakes” to stop the speaker cone from overshoot ) is doubled. The end result? A bass tone that is well controlled, punchy, tight and never muddy or bloomy.

Enclosure Technology

To maximize its tiny cabinet enclosure, Phil Jones Bass designed a custom Rectangular Auxiliary Low Frequency Radiator (RALFR). RALFR is a pneumatically coupled radiator loaded to the rear of the two 4 inch speakers that operates at the lowest bass frequencies only. It augments the output of the loudspeakers at frequencies from 30 to 150 Hz. It also reduces the cone excursion of the speakers, so power handling is greatly improved. The cabinet is also heavily braced internally and lined with acoustic damping materials. This damping prevents cabinet coloration that can interfere with the true sound of your instrument. Now, what you hear from the DOUBLE FOUR is the most realistic amplification of your instrument.



 (1) Input Jack (2) Clip Indicator (3) Mute/ Passive/ Active Switch (4) Input Level (5) Bass-EQ (6) Mid-EQ (7) Treble-EQ (8) Master Vol. Control  (9) AUX Level Control (10) Input AUX Jack (11) Line-Out Jack (12) Head-Phone Jack (13) Power On/Off Switch (14) Power LED (15) DC Power Input

Model Double Four / BG-75

Power Output 70 Watt (RMS)

Speaker 2 x PJB NeoPower, 4 inch speakers. Rectangular Auxiliary Low Frequency Radiator (RALFR) Switch able high gain input OR low gain stage with mute function

EQ 3-Band EQ (Treble, Mid, Bass)

Input AUX-Input Jack, DC-Power Input Socket

Output  Line-Out, Headphone-Out

Other Power Switch

Power 100/240V AC

Dimension (W x D x H) 11 x 8 x 6.8 inch / 280 x 203 x 172 mm

Weight  8.8 lbs / 4 Kg

Color White

Model:  BG-75-BK
Part Number:  BG-75-BK
Brand:  Phil Jones Bass
