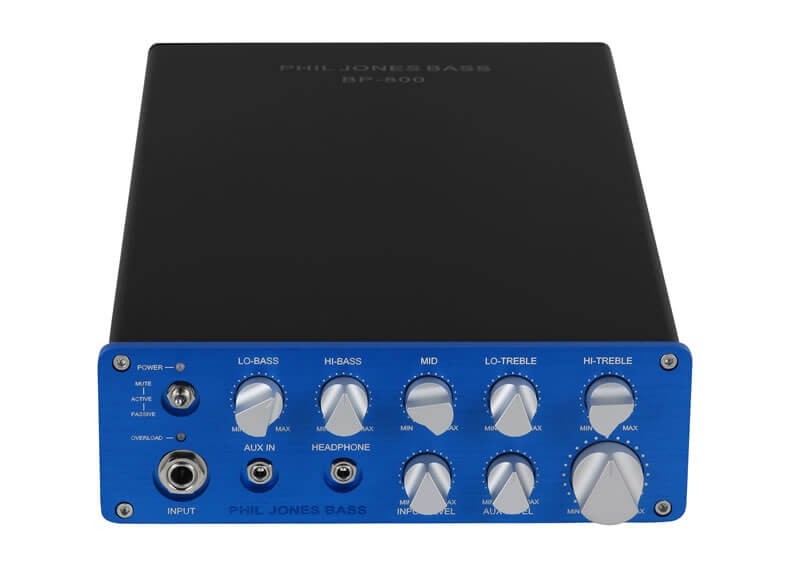

Small and lightweight just got more powerful with the introduction of Phil Jones Bass’ BP-800 bass amplifier. The BP-800 is a high power, high performance no compromise compact amplifier that delivers more bass for the buck. The BP800 features a Class A pre-amp with the popular PJB 5-Band EQ.

Although it weighs only 5.7 lbs and is 7.5” wide the BP-800 is built with the ruggedness and precision needed to withstand all the rigors of live performance and the road. The appealing blue front panel is a quarter inch thick and CNC machined while the chassis is built from thick aluminum extrusion making it incredibly strong. All control knobs are PJB design solid aluminum billet for a high end look and feel.

The BP-800 will work on any AC voltage from 100- 240 volts AC enabling it to conveniently travel worldwide without having to switch to local AC supply voltages. The Power Output is 400 watts into 8 Ohms, and 800 watts into 4 ohms (maximum load). The dimensions are 7.5” wide x 2.5” high x 12.5 “deep.

Other features include Mute /Passive/Active Switch, Headphone out and auxiliary input jacks, Balanced line out with pre/post EQ and ground lift switches, FX send/return Jacks, Pre Amp out and Power amp input jacks and a High-Current Speakon Out.

Model BP-800

Power Output (RMS) 800w/4Ω, 400w/8Ω

EQ 5-BAND EQ

Input 1 x Input , 1 x mini Sw(Mute/Low/High)

Output  Speaker-Out, DI-Out, Line-Out、Headphone-Out

Other AUX-Input

Power 100 – 240V AC

Dimensions 7.5 x 12.5 x 2.5 inch / 190 x 317 x 63 mm (W x D x H)

Weight  5.7 lbs / 2.59 Kg

Model:  BP-800
Part Number:  BP-800
Brand:  Phil Jones Bass
