Channels One
Connection Type IEC

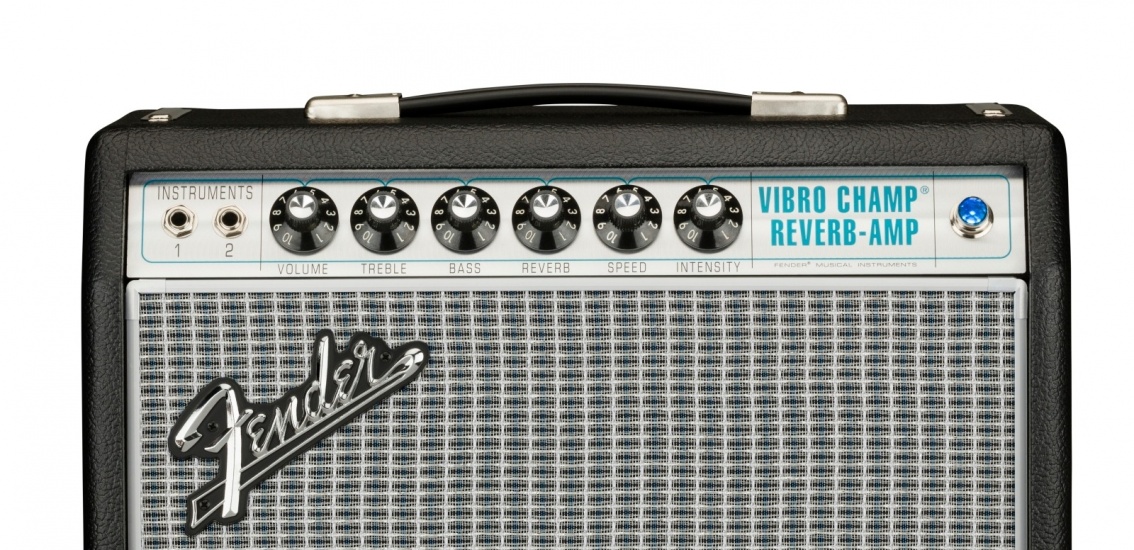

Control Panel Volume, Treble, Bass, Reverb, Speed, Intensity
Controls Volume, Treble, Bass, Reverb, Speed, Intensity
Effects Reverb
Effects Loop
NA Inputs Two - (1/4", Input 2 operates at -6dB)
Line Out NA
Voltage 230V EUR
Wattage 12 Watts
Speaker Wattage 30 Watts

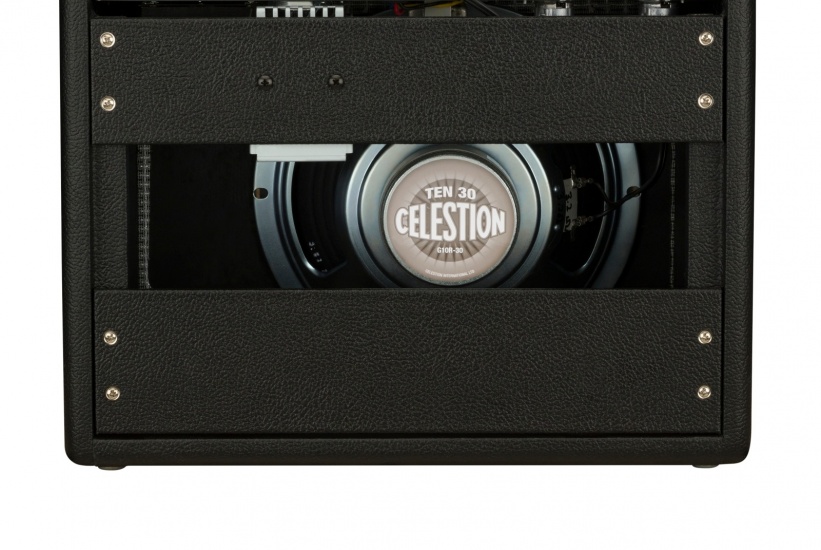

Speakers One - 10" Celestion TEN 30
Total Impedance 8 ohms
Power Tubes 2 x 6V6
Preamp Tubes 3 x 12AX7, 1 x 12AT7
Rectifier Tube (1 x 5AR4)
Amplifier Covering Black Textured Vinyl
Amplifier Jewel Blue Jewel
Cabinet Material 7-Ply 3/4" Birch/Maple Plywood
Control Knobs Vintage-Style Skirted Black Plastic
Front Panel Silver
Grille Cloth Silver Turquoise
Handle Molded Plastic Strap with Nickel-Plated Caps
Reverb Tank 4-Spring, 8 ohm Spring Reverb Unit 4AB3C1B (p/n 0064063049)
Reverb Tank Type 4-Spring, 8 ohm Spring Reverb Unit 4AB3C1B (p/n 0064063049)
Speaker Jack Two - 1/4" Parallel
