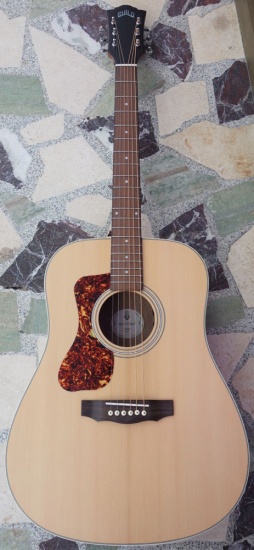

Built with a solid spruce top, mahogany sides, and arched mahogany back, the full-bodied and powerful tone of this Guild dreadnought provides guitarists with a classic acoustic sound and balanced voicing. Guild’s signature arched back design allows for great volume and projection, long sustain, and a lush, full sound. The D-240E features Guild’s Fishman-designed AP-1 electronics, a pau ferro fingerboard and bridge, bone nut and saddle, mother-of-pearl rosette, period-correct tortoiseshell pickguard, and a matte polyurethane finish.

Body Shape: Dreadnought

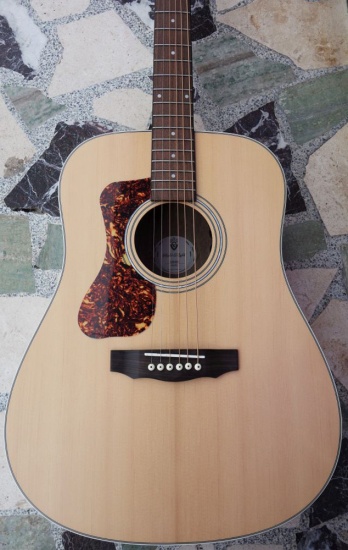

Body Top: Solid Sitka Spruce
Top Bracing Pattern: Scalloped X
Soundhole Diameter: 3 7/8" (98mm)
Rosette: Mother-Of-Pearl / ABS
Top Purfling Inlay: Black/White/Black ABS
Body Sides: Mahogany

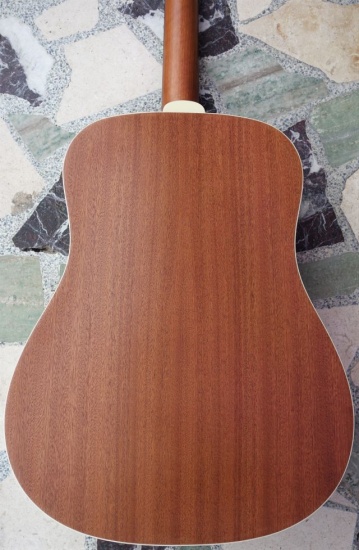

Body Back: Mahogany
Body Binding: Ivory ABS Neck

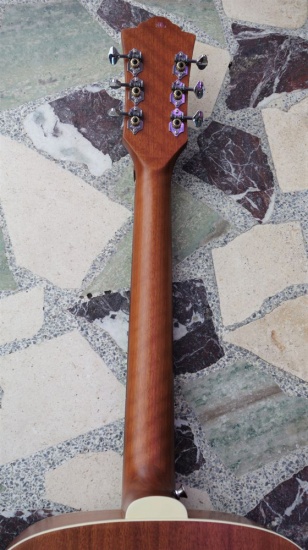

Neck Material: Mahogany
Scale Length: 25 1/2" (648mm)
Neck Shape: C Shape
Nut Width: 1 11/16" (43mm)
Neck Thickness 1st Fret: 20mm
Neck Thickness 9th Fret: 24mm
Truss Rod: Dual Action
Truss Rod Wrench: 4mm Allen Key
Fingerboard Material: Pau Ferro
Fingerboard Radius: 16" (406mm)
Fingerboard Inlays: 5mm Dots - Mother-Of-Pearl
Frets Total: 20

Finish: Color Natural (NAT)
Finish: Satin Polyurethane
Finish Top: Satin Polyurethane in Natural
Finish Back and Sides: Satin Polyurethane in Natural
Finish Neck: Satin Polyurethane in Natural

Bridge Material: Pau Ferro
Bridge String Spacing: 2 1/4" (56mm)
Bridge Pins: Ivory Colored Plastic with Black Dot
Saddle Material: Compensated Bone
HARDWARE Finish: / Plating: Nickel
Nut Material: Bone

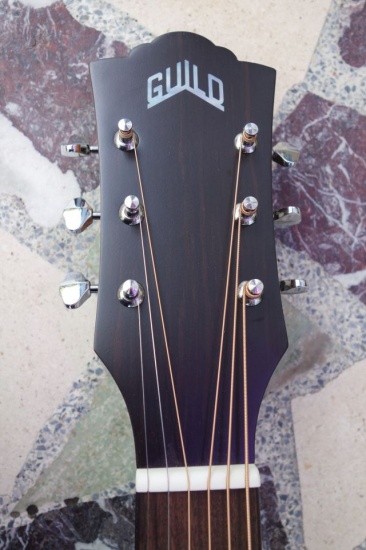

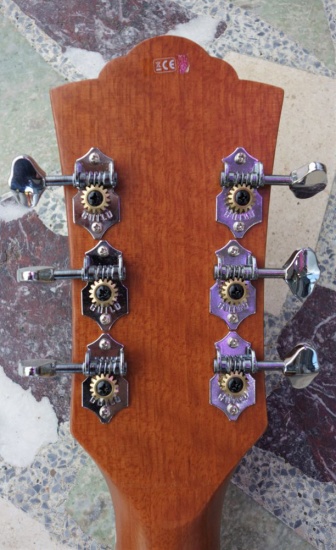

Tuning Machines: Guild GBB1 Butterbean
Tuning Machines: 16:1 Nickel
Endpin: Nickel Strap Button
Pickguard: Tortoiseshell

Electronics: Guild/Fishman AP1 with Sonicore pickup, Volume and Tone controls w/combination battery box/output jack

Strings: D'Addario EXP16 - Coated Phosphor Bronze Light (.012 - .053)
Upper Bout Width: 11 5/8" (295mm)
Lower Bout Width: 15 3/4" (400mm)
Body Depth Upper Bout: 3 3/4" (95mm)
Body Depth Upper Lower: 4 3/4" (121mm)
Body Length: 19 3/4" (502mm)
Overall Length: 42" (1067mm)

Model:  D240E-LH
Part Number:  GUI-D-240-E/LH
Brand:  Guild
Range  Westerly
Body Shape  Dreadnought
Electro Acoustic  Yes
Body Material  Spruce
Soundboard  Solid Spruce
Back & Sides  Mahogany
Fingerboard  Rosewood
Neck Material  Mahogany
Scale Length  25.5" (647mm)
Construction  Set Neck
Colour  Natural
Finish  Satin
Left Hand  Yes
Case Supplied  -
Number of Strings  6
Type  Acoustic Guitar
