Introducing a new addition to the DigiTech Whammy Family -- Whammy DT! DigiTech have taken the premier pitch shifting effects pedal added drop tuning and true bypass to bring you the ultimate Whammy pedal, the Whammy DT. With the Whammy DT, you can modify your tuning without having to change guitars or pause awkwardly to make adjustments for the next song. Key changes are at the tips of your toes and take just moments, which is crucial when the audience is feeling your vibe. Pitch shifting effects really help your guitar performance stand out and the Whammy pedal has been the core pitch shifting effect for famous artists for over 20 years. Now add full drop and raised tuning in addition to classic Whammy shifting to your effects arsenal and find out why the Whammy DT is the premiere pitch shifting effects pedal for every guitarist.
D/A Conversion 24 bit
Pitch Bend Range +2/-3 Octaves
Detune Range -4 to -30 cents
Drop Tune Range 1-7 Semitones, Octave, Octave + Dry
Power Consumption 2.6 Watts (< 288 mA @ 9 VDC)
Power Adapter 9 VDC External Adapter
Sample Rate 44.1 kHz
Frequency Response 20 Hz to 20 kHz
Signal to Noise Ratio > -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain

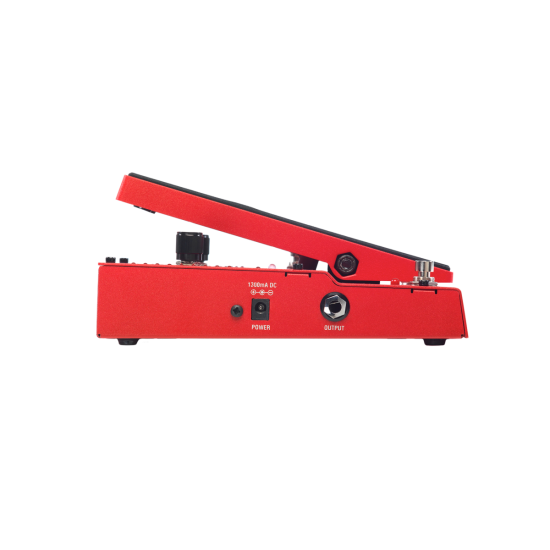

AUDIO OUTPUT
Output Type 1/4” Unbalanced TS
Max Output Level +10 dBu
Output Impedance 1 kΩ

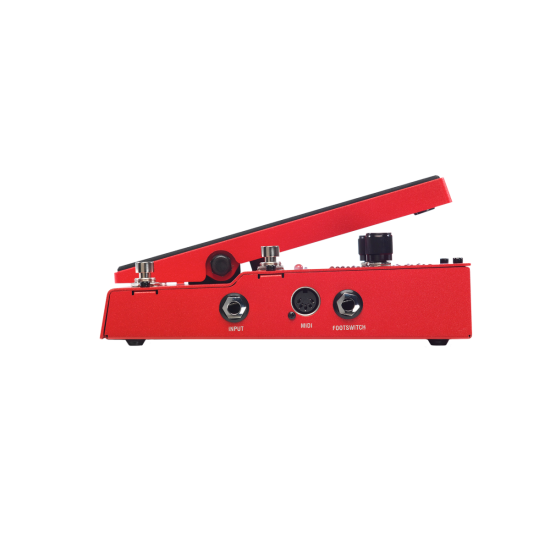

AUDIO INPUT
Instrument Input Type 1/4” Unbalanced TS
Max Input Level +5 dBu
Input Impedance 1 MΩ
MIDI Input 5-Pin Din
Footswitch Input 1/4” TRS – for use with optional FS3X Footpedal
DIMENSIONS
Height 2.36"
Width 8.2"
Depth 7.73"
