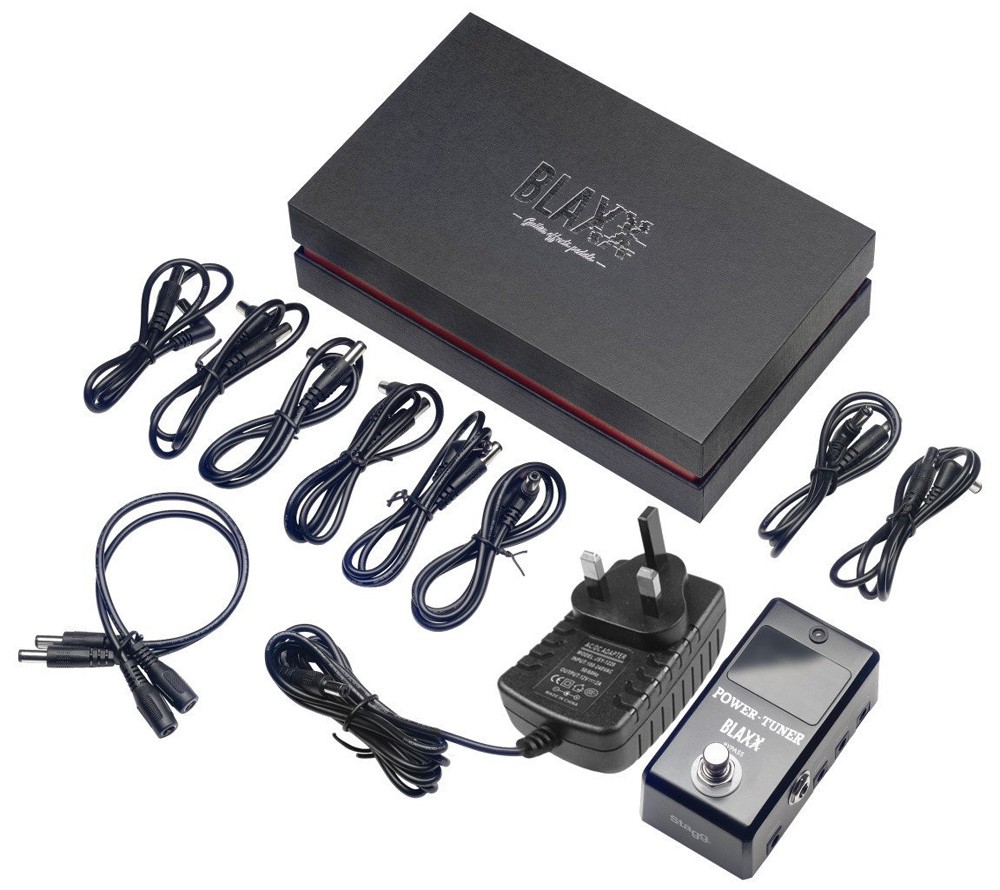

The power hub for your Blaxx FX pedals including built in tuner pedal.The power supply for the Blaxx pedal range including a Blaxx tuner built into the central hub. Accommodating up to 8 FX pedals, there are 8 x 9v 300 mA connectors that feed from the central Power-Tuner. The simplicity of the central hub allows you to connect and disconnect pedals with ease and providing the perfect base for your Blaxx pedal board.
Housing Die-cast metal
Power supply 12 V DC 2 A adapter
Footswitch On / off
LED indicator On / off
Inputs 6 x 9V 100 mA and 2 x 9V 500 mA (independent)
Input impedance 100k ohms
Output impedance 1k ohms
Working current 30 mATotal maximum current output 1.6 A
Input and output 6.35 mm (1/4") jack
Pedal dimensions (W x H x D) 5 x 9.5 x 5.5 cm (2 x 3.7 x 2.2")
Box dimensions (W x H x D) 21 x 6.4 x 13 cm (8.2 x 2.5 x 5.1")Pedal weight 267 g (0.59 lb)
Box weight 700 g (1.5 lb)
Included 8 x 55 cm (21.7"') cables and 2 x 20 cm (7.9") polarity conversion cables
