Fender Engine Room LVL12 Power Supply

Our Price: Call For Pricing Info

Availability

Available to Order

Notify me when this item is available

12 ground isolated outputs – 10 outlets fixed 9Vdc at 500mA and 2 outlets with switchable voltage (9v/12v/18v)
Global mains input voltage (100-240Vac) 50/60Hz for use anywhere in the world
Standard IEC mains voltage connector
Dimensions: Length 282 mm (11.102 in); Width 90 mm (3.543 in); Height 42 mm (1.654 in)
5V USB-A and USBC output for charging smart devices

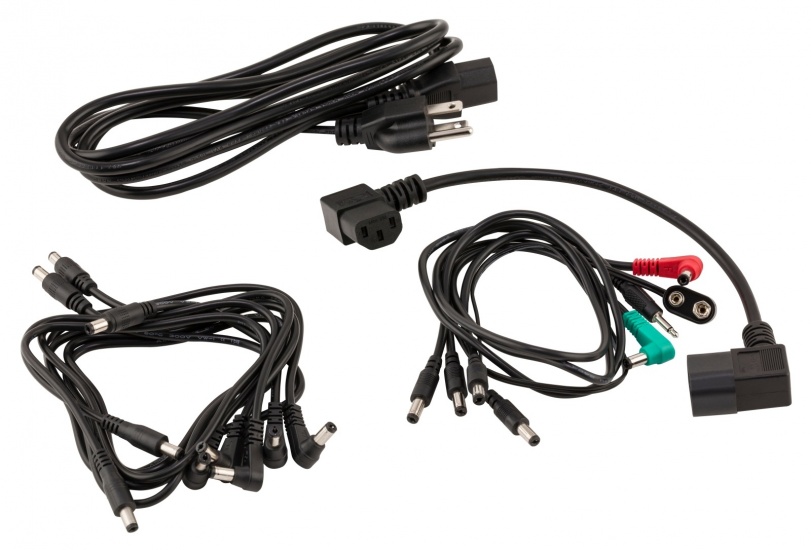

Cable kit includes
- 6 x 2.1mm barrel connector 24” (60cm) length
- 4 x 2.1mm barrel connector 18” (45cm) length
- 2 x 2.1mm barrel connector 12” (30cm) length
- 1 x 2.5mm to 2.1mm barrel
- 1 x 2.5mm to 2.1mm barrel reverse polarity
- 1 x 3.5mm TS to 2.1mm barrel
- 1 x 9V Battery clip to 2.1mm barrel
- 1x IEC daisy-chain cable (male to female)

Click & Collect Available

All Guitars Set Up Before Despatch. Read more ..

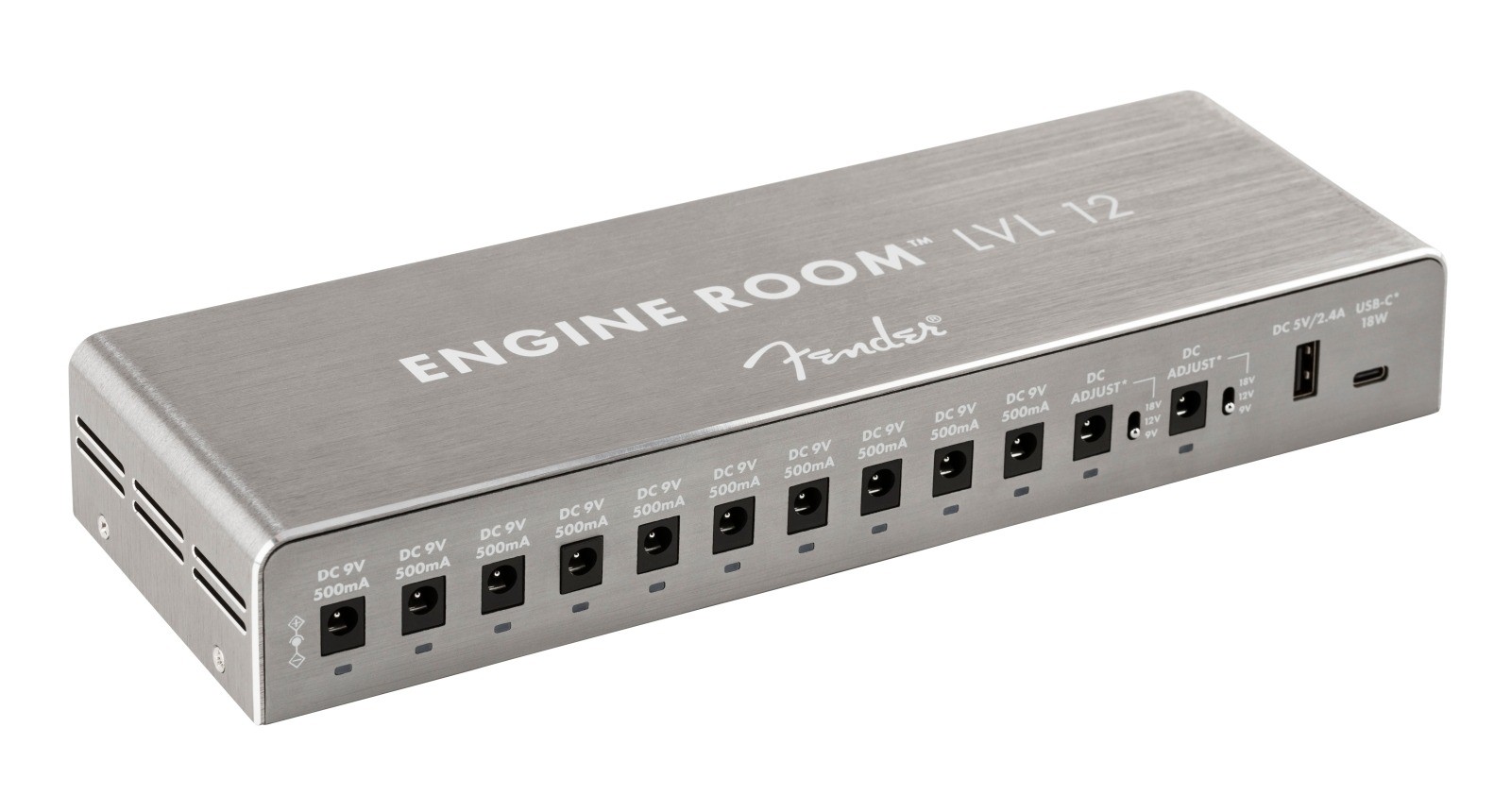

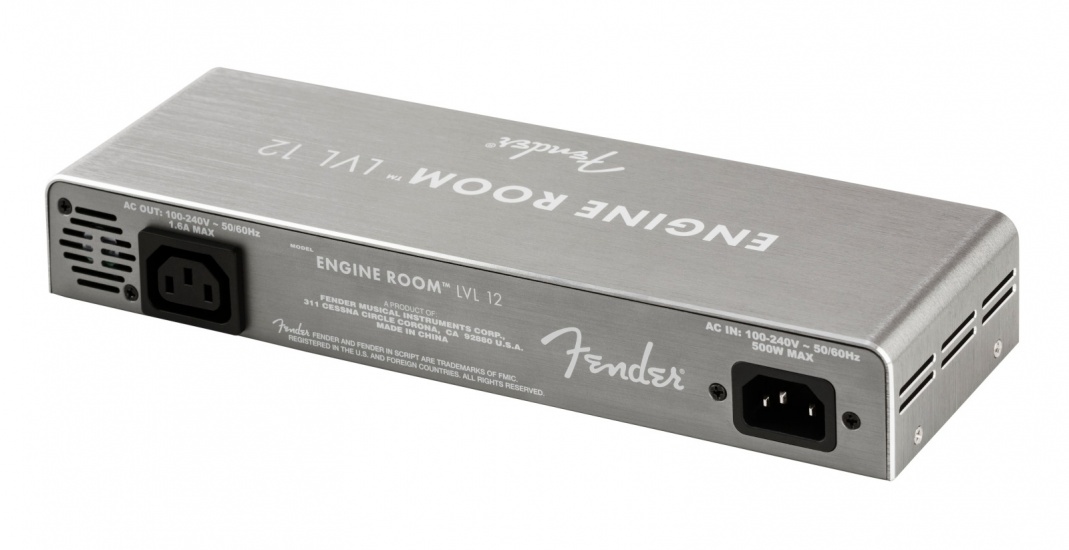

Designed to accommodate all your pedalboard needs, the Engine Room LVL 12 is ready to deliver. Featuring twelve ground isolated power outlets, (10) are capable of delivering 9Vdc at 500mA while (2) additional outlets provide switchable voltage (9v/12v/18v) via 3-way toggle or slide switch. A courtesy IEC outlet on the back allows you to add an additional Engine Room LVL5, LVL8, or even LVL12 for the biggest rigs.

The Engine Room Power Supply was designed by Fender’s in-house team of experts in Southern California. The chassis is crafted from lightweight, durable anodized aluminum, and its sleek, low-profile appearance is engineered to accommodate most pedalboards. Road-tested and ready for live or studio use, Fender’s Engine Room Power Supply is built to power your performance.

Output 12 - Ground Isolated Outputs; 10 (9V/500mA), 2 Switchable (9V/500mA, 12V/375mA, 18V/250mA)

Voltage 230V UK

Included Accessories 6 x 2.1mm barrel connector 24” (60cm) length 4 x 2.1mm barrel connector 18” (45cm) length 2 x 2.1mm barrel connector 12” (30cm) length 1 x 2.5mm to 2.1mm barrel 1 x 2.5mm to 2.1mm barrel reverse polarity 1 x 3.5mm TS to 2.1mm barrel 1 x 9V Battery clip to 2.1mm barrel 1x IEC daisy-chain cable (male to female)

Model: 0230104012
Part Number: 0230104012
Brand: Fender
